Geophysical Services Singapore

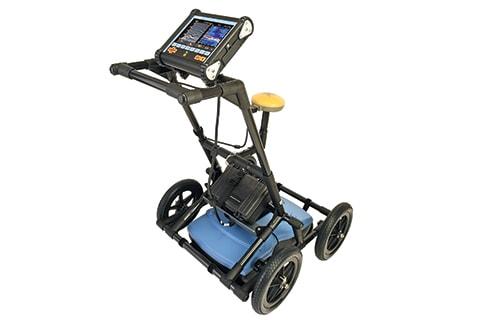

Ground Penetrating Radar (GPR) survey is based on the emission of electromagnetic waves into the ground and the detection of reflections from objects in the subsurface. From the measured travel-times, the location and depth of these objects can be determined.

With a wide range of GPR experience and the latest GPR technologies, you can be assured that our full-fledged GPR services has ample coverage for all your needs.

View our extensive GPR coverage is details below:

Quality Work

We deliver reports that is clear and accurate with top quality full-colour survey drawings

Quick Response

Our clients receive quicker response from their first enquiry until report submission

Competitive Pricing

Our competitive pricing providing real value for money

Our team provides great support to clients before and after the execution of surveys

Geophysical Services Singapore

Electrical Resistivity Tomography (ERT) or Electrical Resistivity Imaging (ERI) technique is based on the measurement of electrical resistivity of the soil layers using a multi-electrode array. Data can be acquired in both 2D and 3D as per the requirements.

It allows both lateral and vertical distribution of the resistivity distribution of soil layers. The geometry of geological and manmade objects can be determined based on these results, using characteristic resistivity contrasts.

Geophysical Services Singapore

Vertical Electrical Sounding (VES)

Vertical Electrical Sounding (VES) is an electrical method used for the calculation of resistivity of soil layers assumed to horizontal layers. In VES four electrode resistivity survey set up will be used whereby the current is passed through the two outer electrodes and the resulting potential difference measured across two inner electrodes.

From the electrode spacing, current and potential difference values apparent resistivity of the soil layers will be calculated. Our expertise lies in the following areas:

Geophysical Services Singapore

Multichannel Analysis of Surface Waves (MASW)

Multichannel Analysis of Surface Waves (MASW) is a is a type of seismic survey based on the study of surface waves in the ground. The acquisition of MASW allows to obtain two-dimensional shear wave velocity sections.

As this shear wave velocity represents the stiffness of the soil, this technique can be used for mapping of subsurface cavities, rock head profiling, grouting evaluation, etc. widely in Singapore.

Geophysical Services Singapore

Seismic Refraction Tomography (SRT)

Seismic Refraction Tomography records the arrival times of refracted seismic waves from different geological layers. It will help to compute the seismic velocity of different soil/rock units in order to identify them.

Seismic refraction surveys commonly involve laying out a spread of geophones in a straight line, with seismic impact source points positioned with and off the ends of the geophone spread.
